Combing the benefits of a large picture window, which allows light to flood in to and internal space, with an easy opening operation. Our Lift & Slide doors are a high quality, highly versatile system which is a great option for even the largest project. Delivering outstanding thermal efficiency. Our Lift & Slide doors offers contemporary styling and robust performance, with the option of slide, or lift and slide operation on double or triple tracks.
Description
Lift & Slide doors offers the same contemporary styling and robust performance associated with the system whilst delivering superior thermal performance.
This adaptable system is suitable for use as either sliding commercial entrances where large opening apertures are required, or as dynamic residential sliding doors that maximise light and give stunning unimpeded views. Profiles have been designed to improve both strength and weather resistance. All main sections feature an extended polyamide thermal break that allows us to achieve a U Value of 1.6 W/m²K when installed with a suitable sealed unit.
Doors are available in both single and dual colour in wide choice of standard and non-standard finishes including Smart’s unique Sensations range of textured colours.
The system is also suitable for use with auto slide opening mechanisms (sold seperately).
- Inline sliding or lift & slide options
- Slim interlock option
- Colour matched accessories now available speak with your supplier for details
- British Standard Kitemarked system achieving: KM 530838 PAS 24:2012
Specifications
| Brand | Thermal break aluminium system |
| Material | Aluminium Polyamide |
| Dual Colour | Yes |
| Thermally Broken | Yes |
| NBS Available | Yes |
Performance
| U Value | 1.6 W/m²K based on using a sealed unit with 1.0 W/m²K centre pane |
| Air | Class 3, 600Pa |
| Water | Class 7a, 300Pa |
| Document L Compliant | Yes |
| Kitemakrk | Yes |
Dimensions
| Max Width | Within height & weight limitations |
| Max Height | 2500mm (Sash) |
| Max Weight | 200kg |
| Glazing | 38mm double or triple glazed units |
| Frame Depth | 100mm |

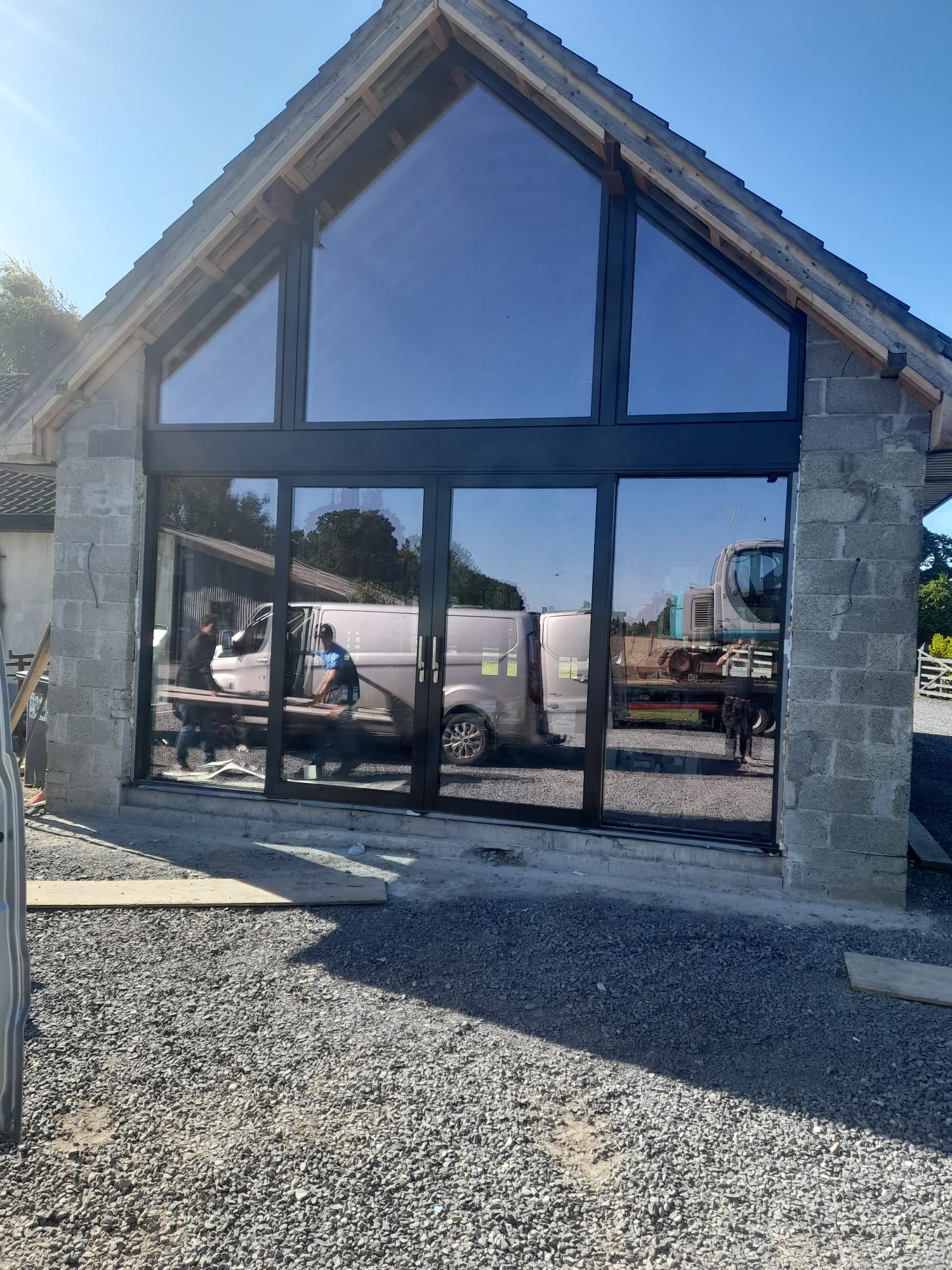

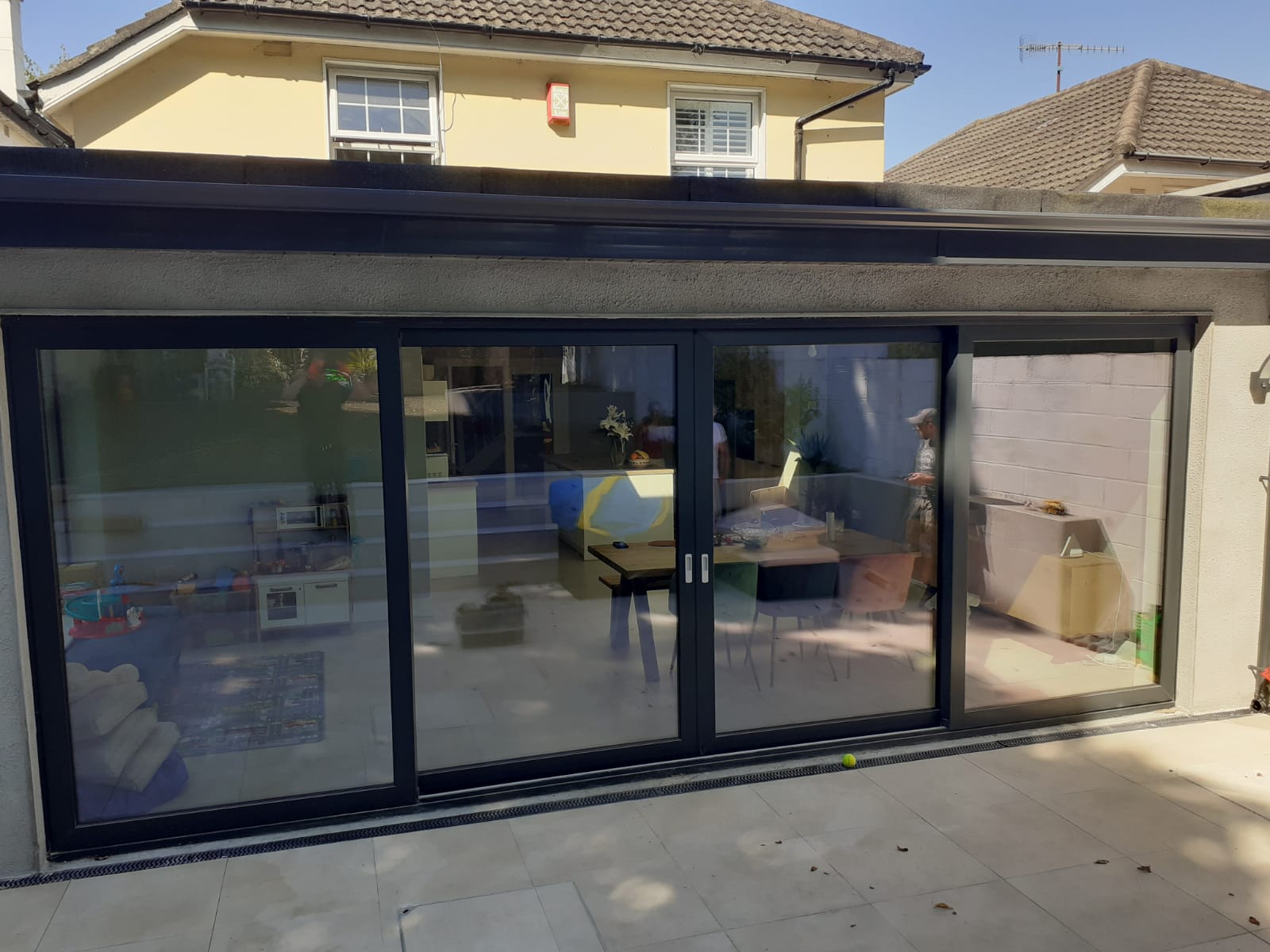

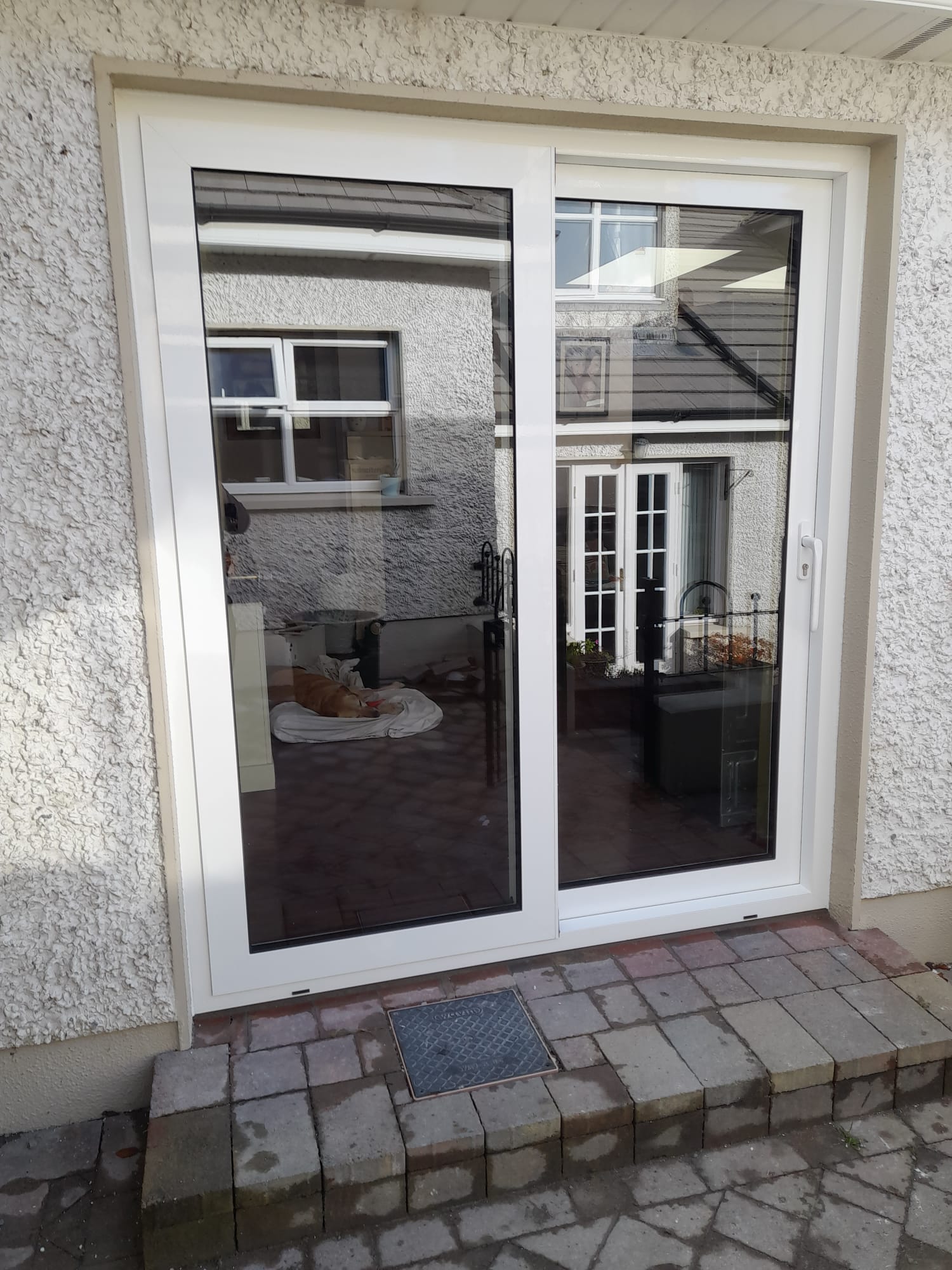

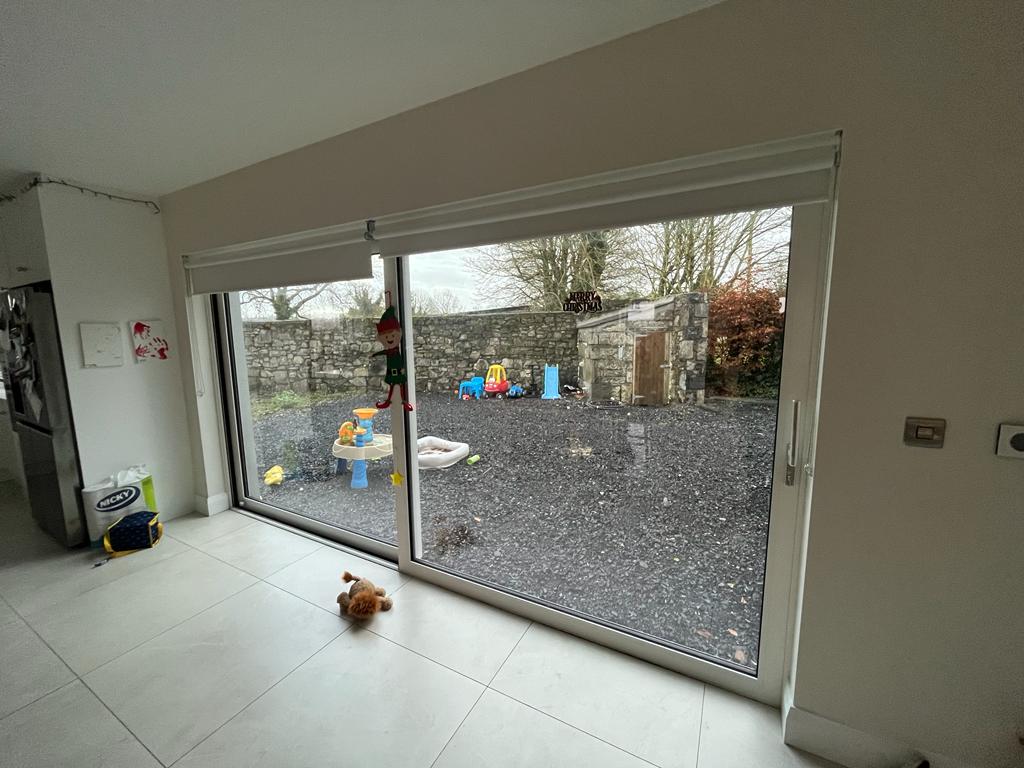

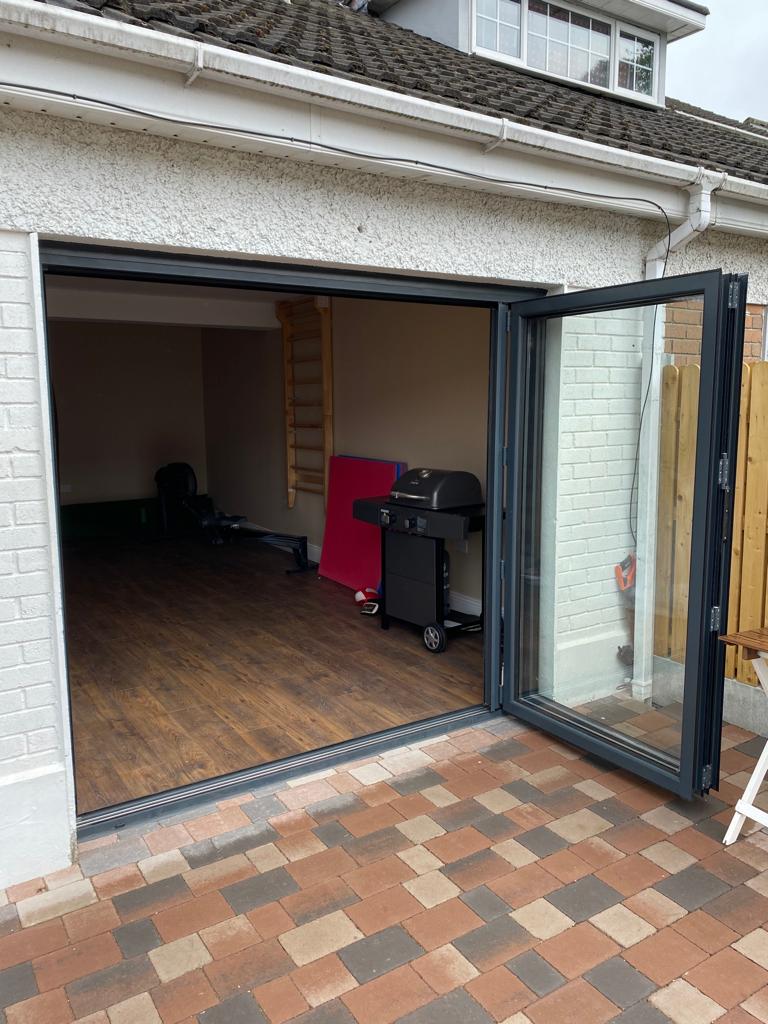

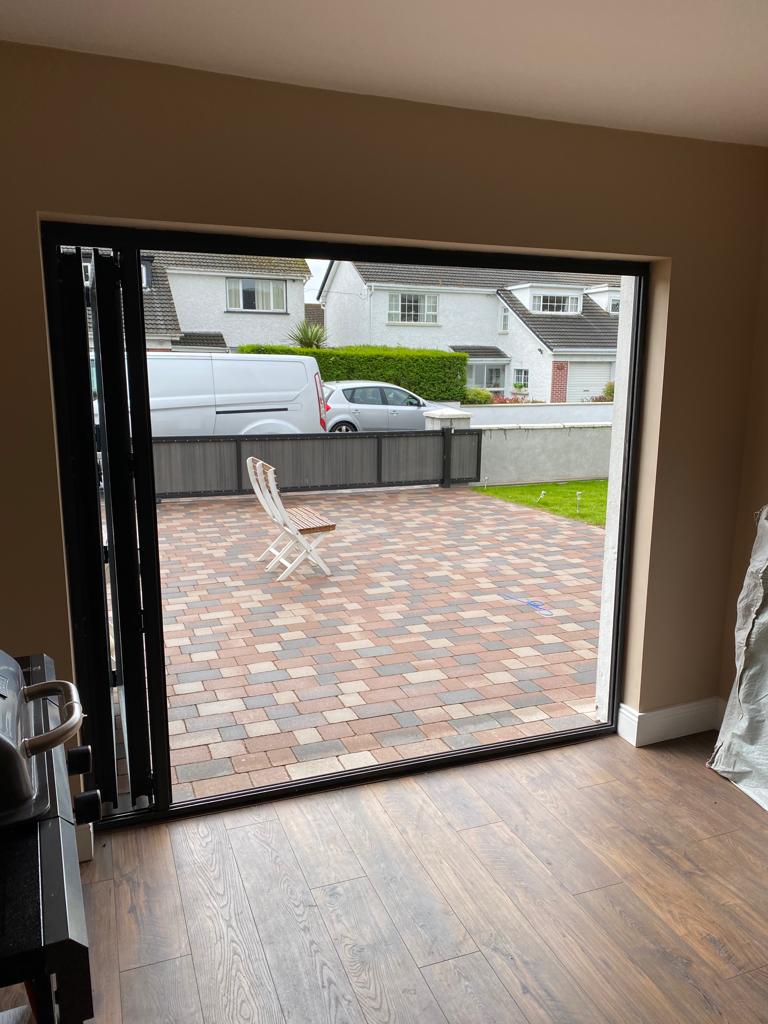

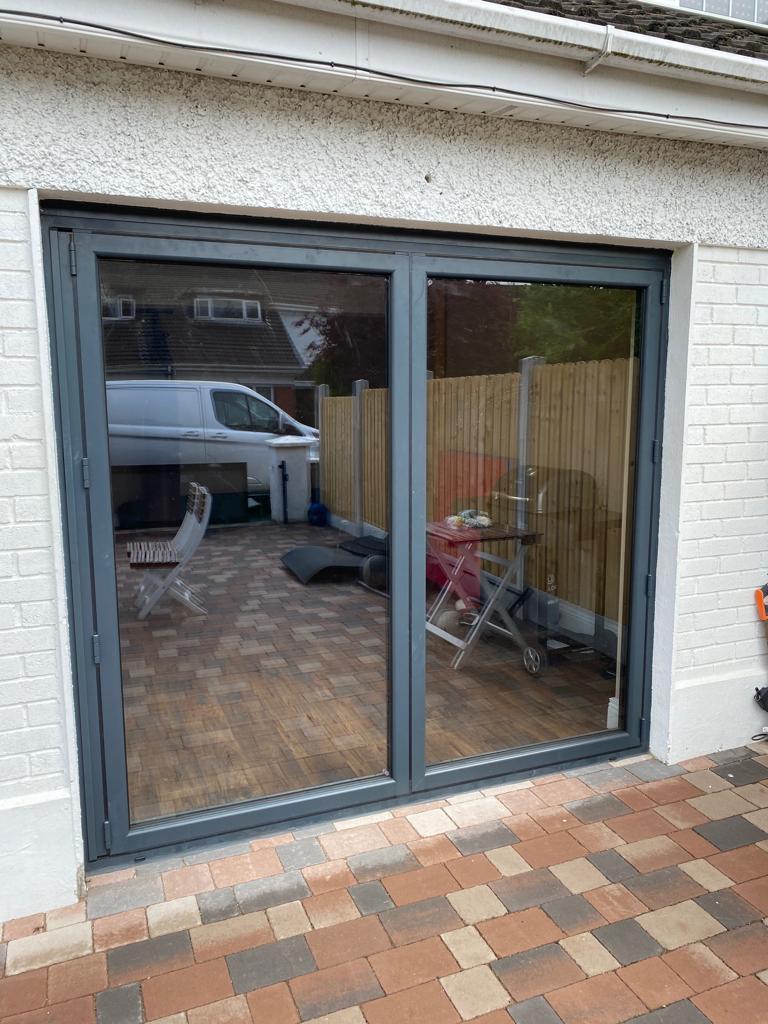

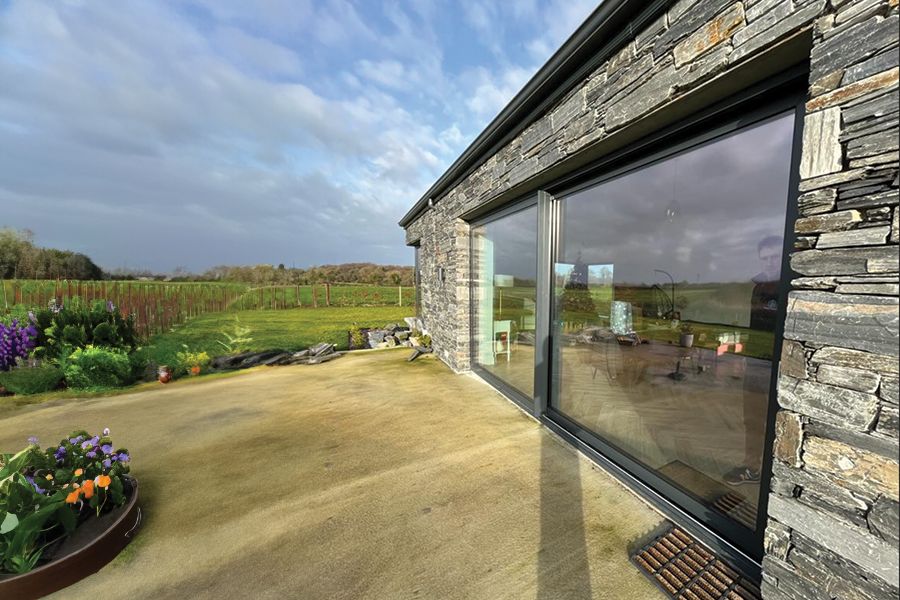

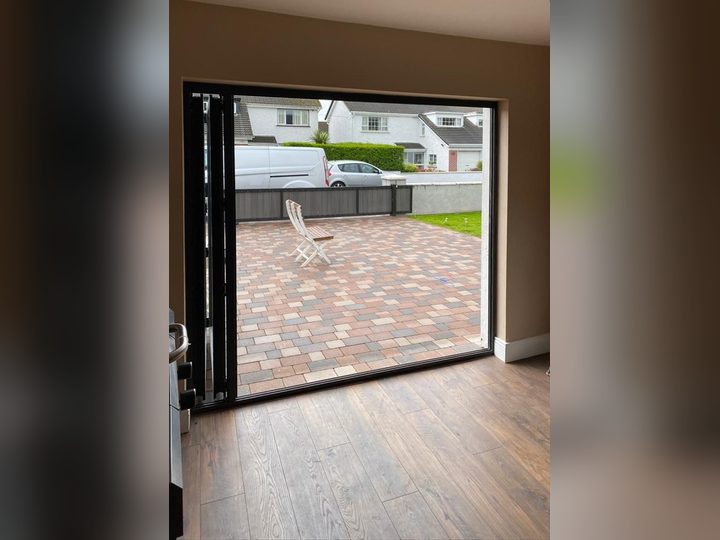

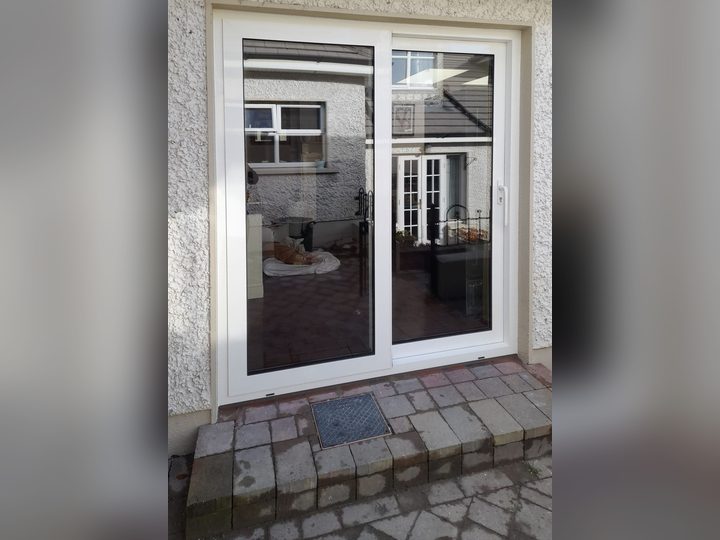

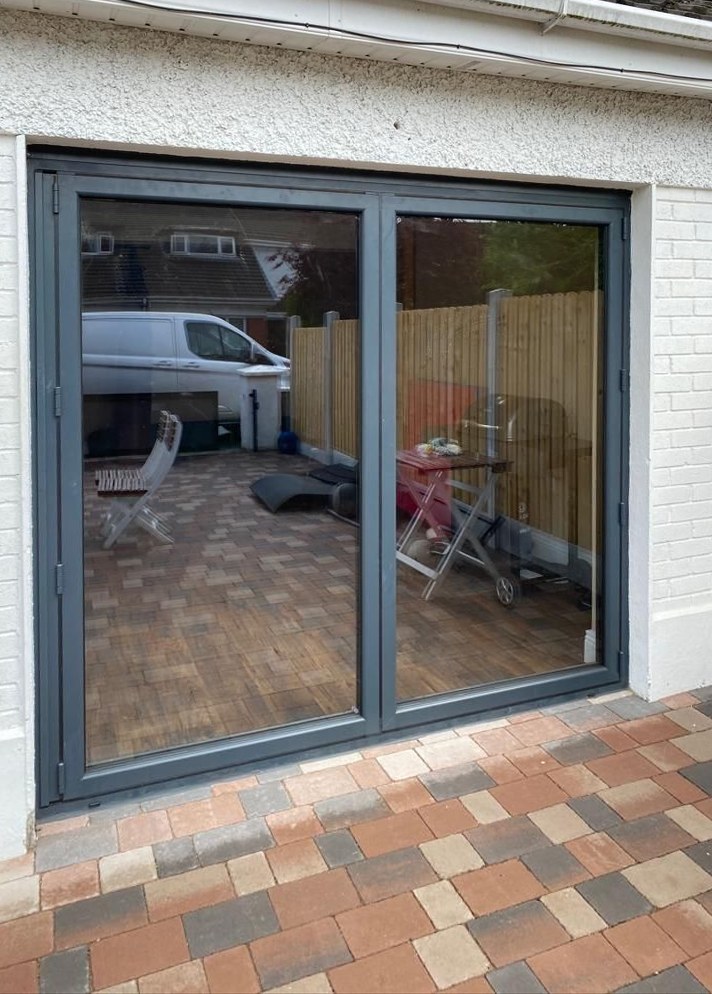

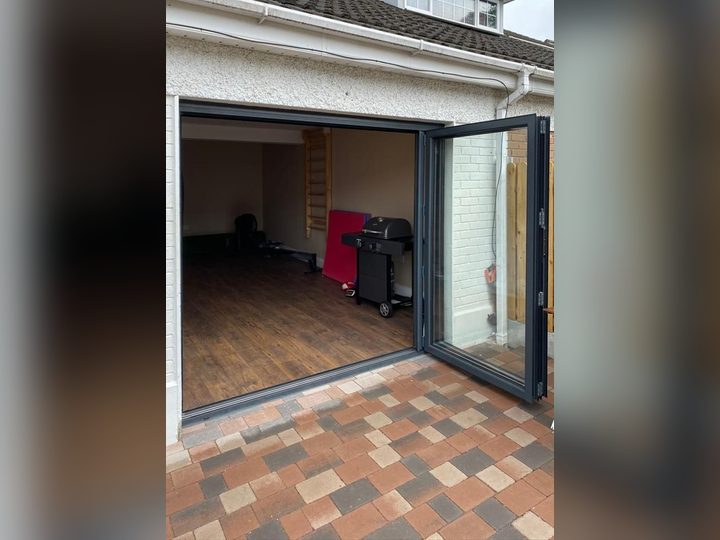

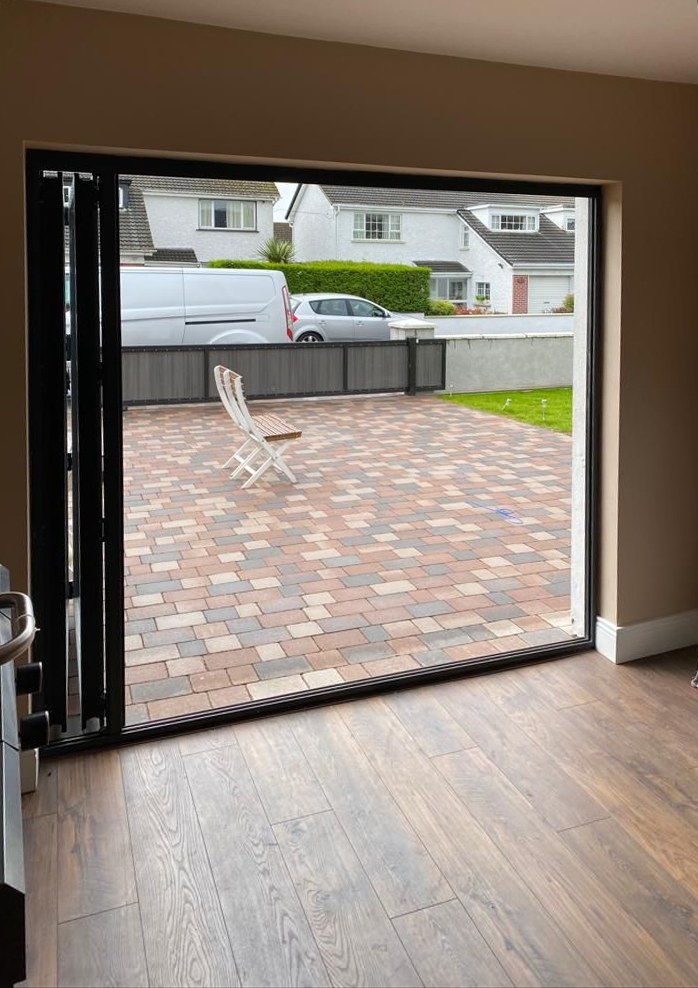

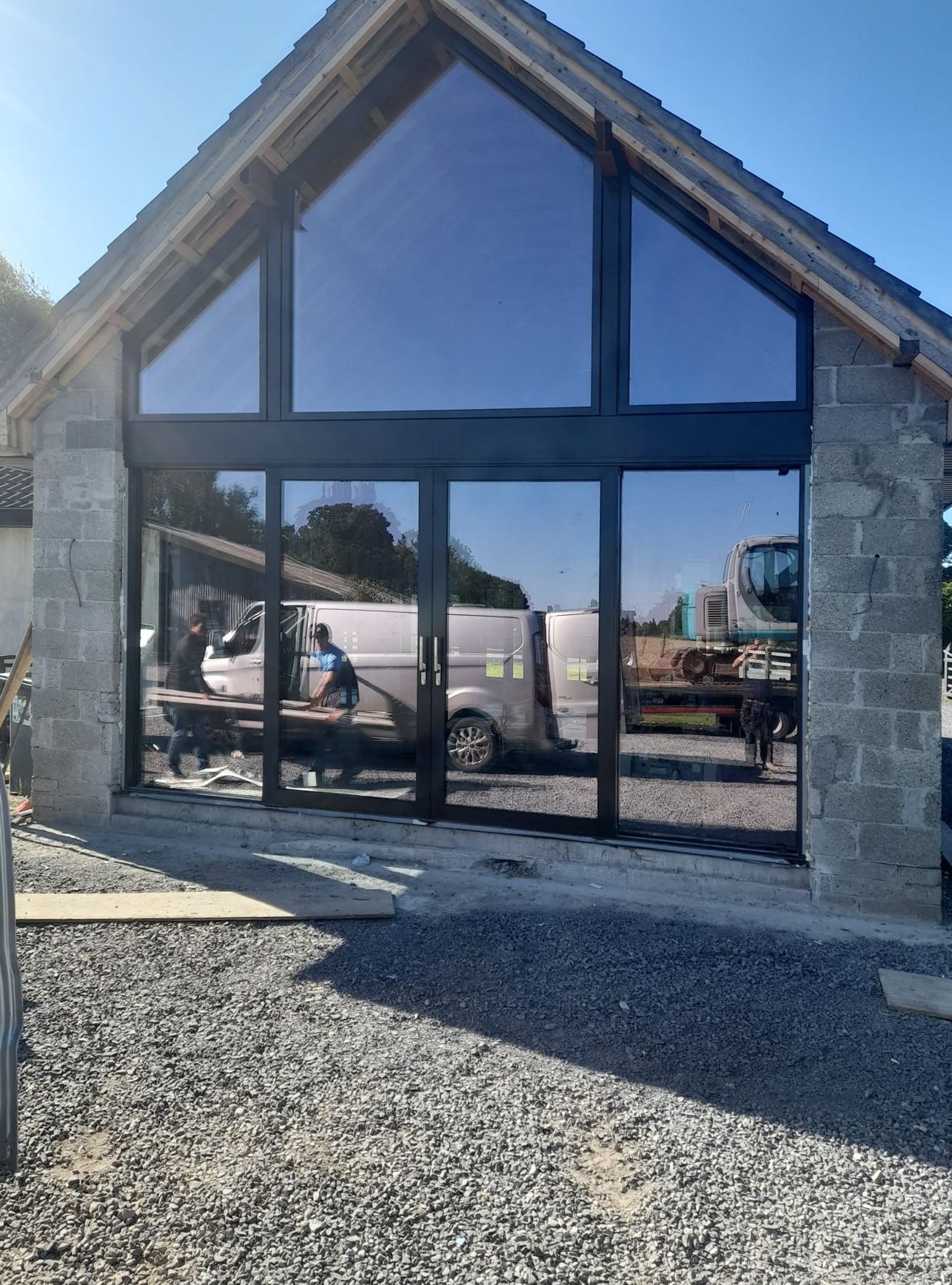

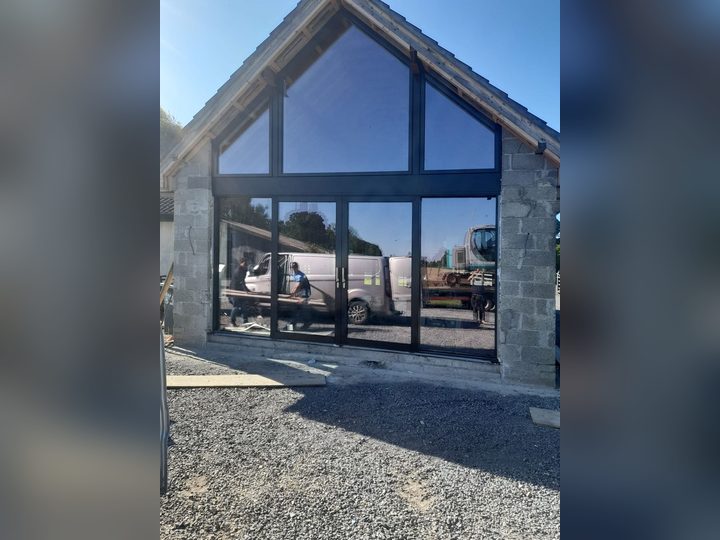

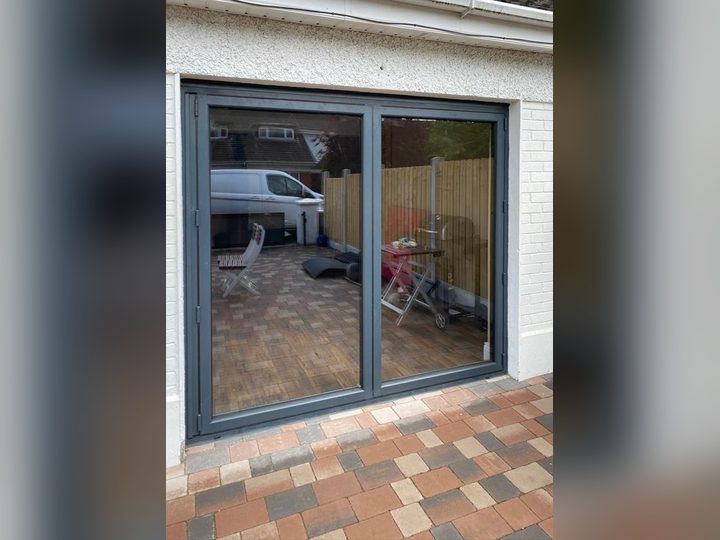

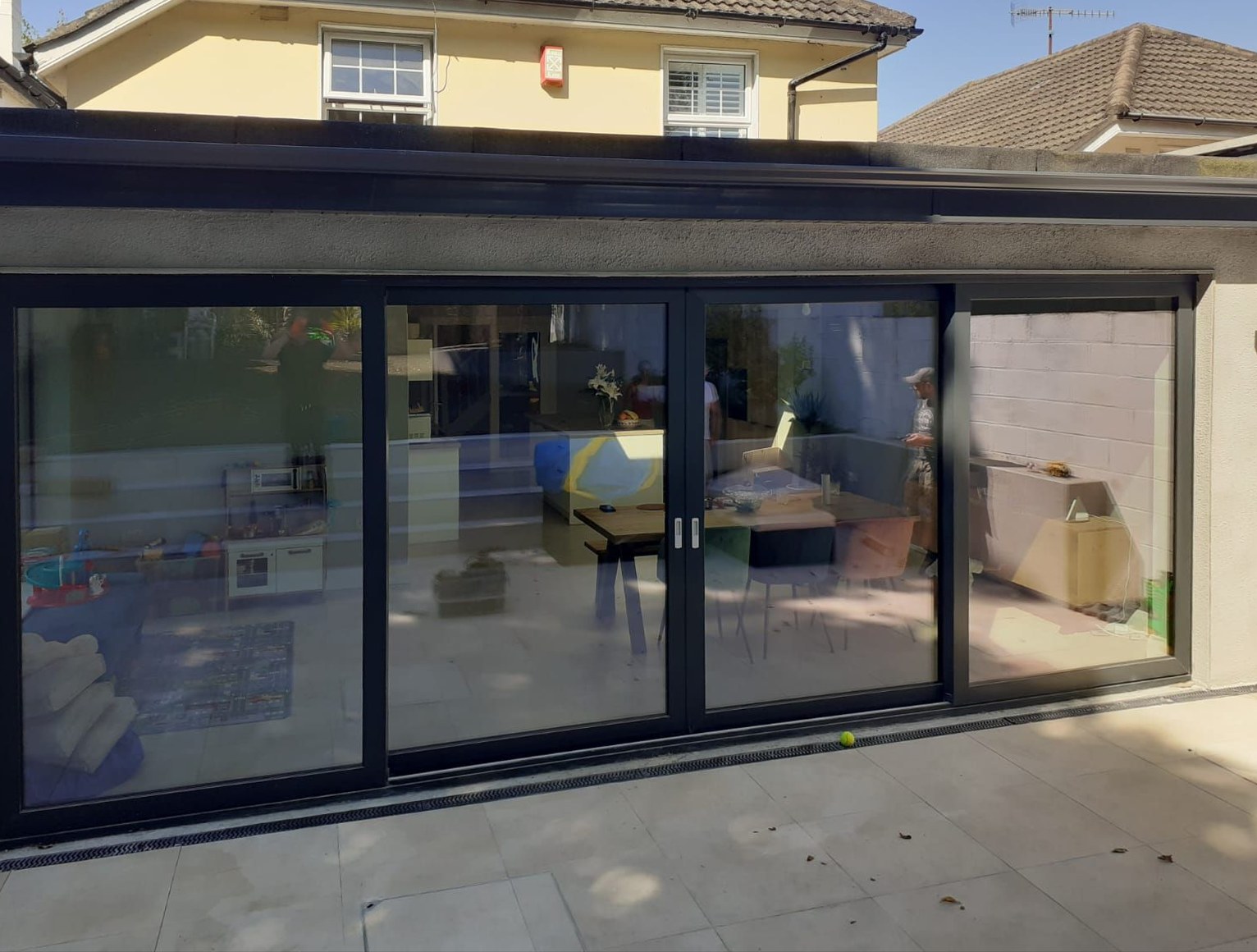

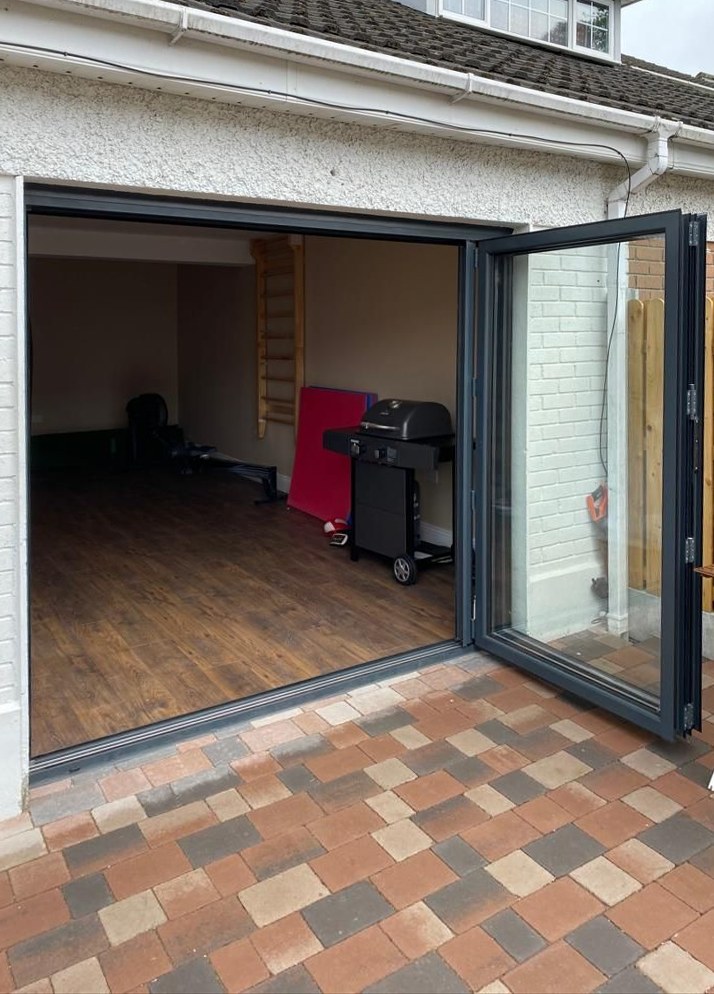

Life & Slide Doors Gallery
