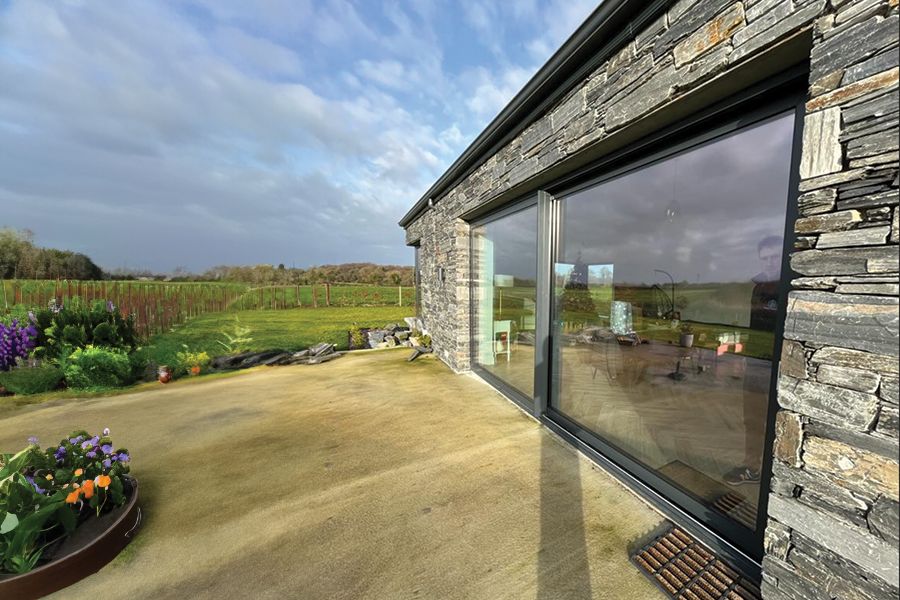

Lift & Slide Doors

The AMS MU-144 lift and slide door system is an internally glazed system that can take units ranging from 28mm up to 40mm in depth. It is available in a range of single RAL, Anodic and Decoral Wood Finish colours as standard.

Get Your Free Quotation

Combing the benefits of a large picture window, which allows light to flood in to and internal space, with an easy opening operation. Our Lift & Slide doors are a high quality, highly versatile system which is a great option for even the largest project. Delivering outstanding thermal efficiency. Our Lift & Slide doors offers contemporary styling and robust performance, with the option of slide, or lift and slide operation on double or triple tracks.

Description

Lift & Slide doors offers the same contemporary styling and robust performance associated with the system whilst delivering superior thermal performance.

This adaptable system is suitable for use as either sliding commercial entrances where large opening apertures are required, or as dynamic residential sliding doors that maximise light and give stunning unimpeded views. Profiles have been designed to improve both strength and weather resistance. All main sections feature an extended polyamide thermal break that allows us to achieve a U Value of 1.6 W/m²K when installed with a suitable sealed unit.

Doors are available in both single and dual colour in wide choice of standard and non-standard finishes including Smart’s unique Sensations range of textured colours.

The system is also suitable for use with auto slide opening mechanisms (sold seperately).

  • Inline sliding or lift & slide options
  • Slim interlock option
  • Colour matched accessories now available speak with your supplier for details
  • British Standard Kitemarked system achieving: KM 530838 PAS 24:2012
Specifications
BrandThermal break aluminium system
MaterialAluminium Polyamide
Dual ColourYes
Thermally BrokenYes
NBS AvailableYes
Performance
U Value1.6 W/m²K based on using a sealed unit with 1.0 W/m²K centre pane
AirClass 3, 600Pa
Water
Class 7a, 300Pa
Document L CompliantYes
KitemakrkYes
Dimensions
Max WidthWithin height & weight limitations
Max Height2500mm (Sash)
Max Weight
200kg
Glazing38mm double or triple glazed units
Frame Depth100mm

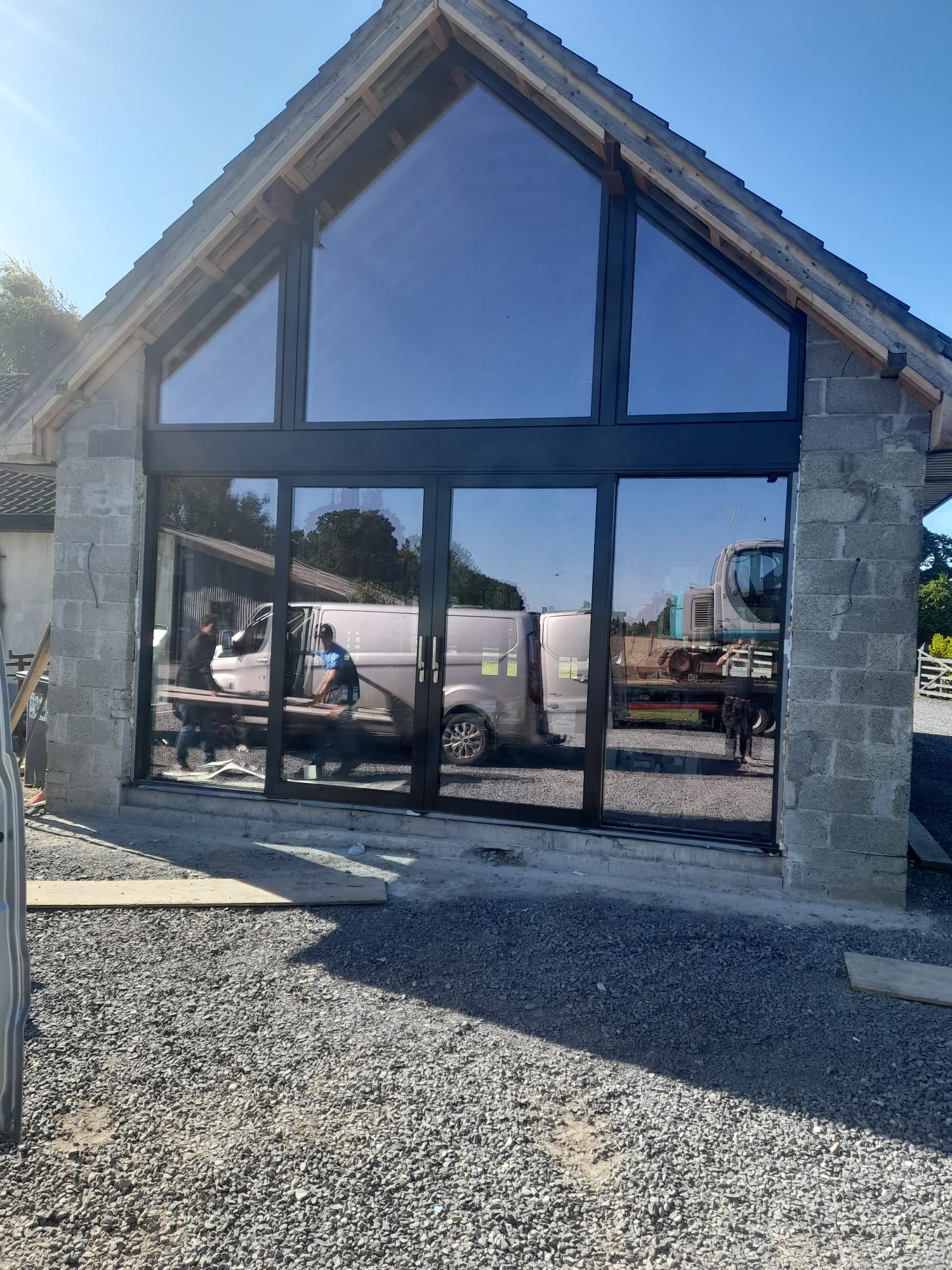

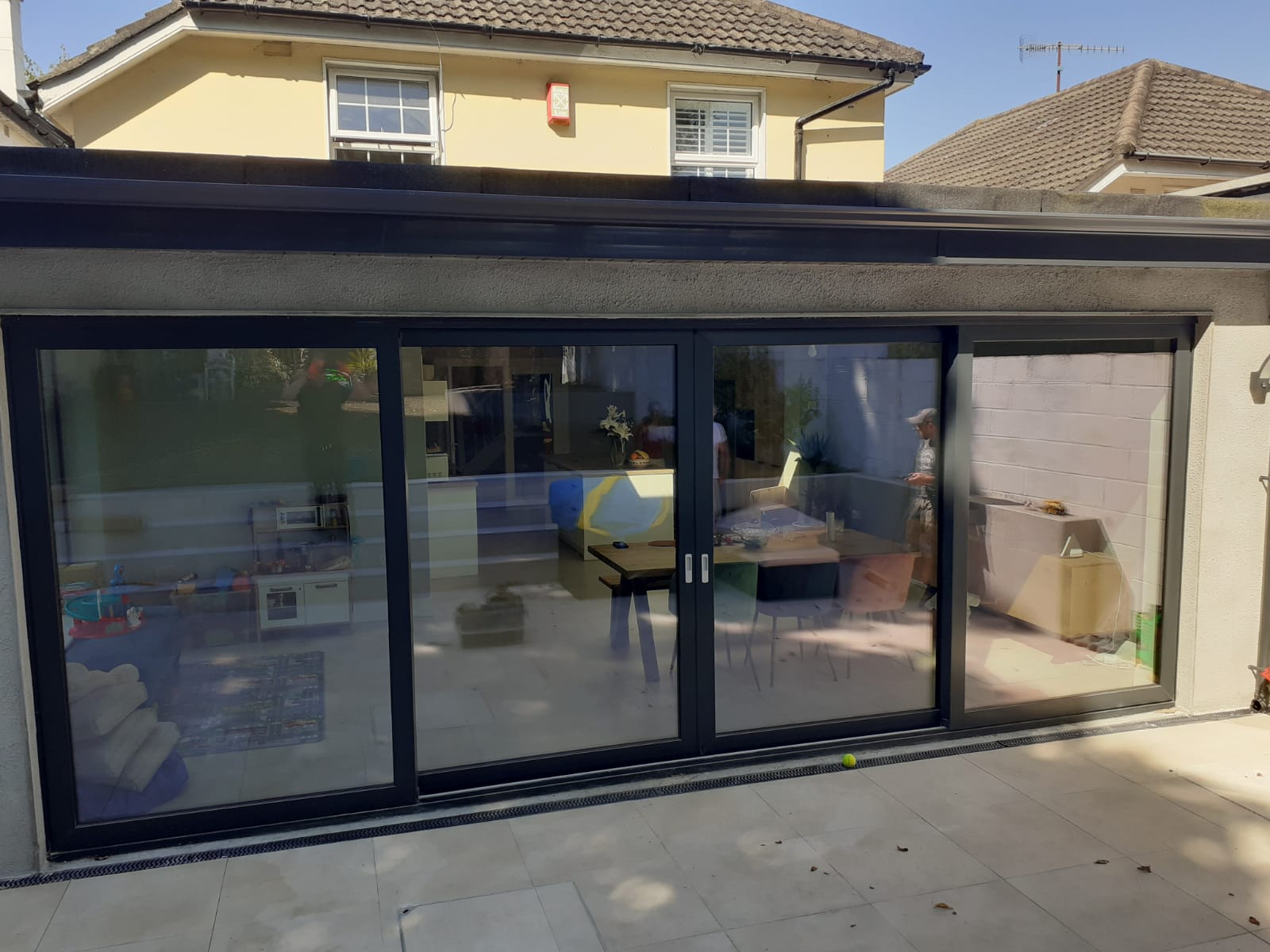

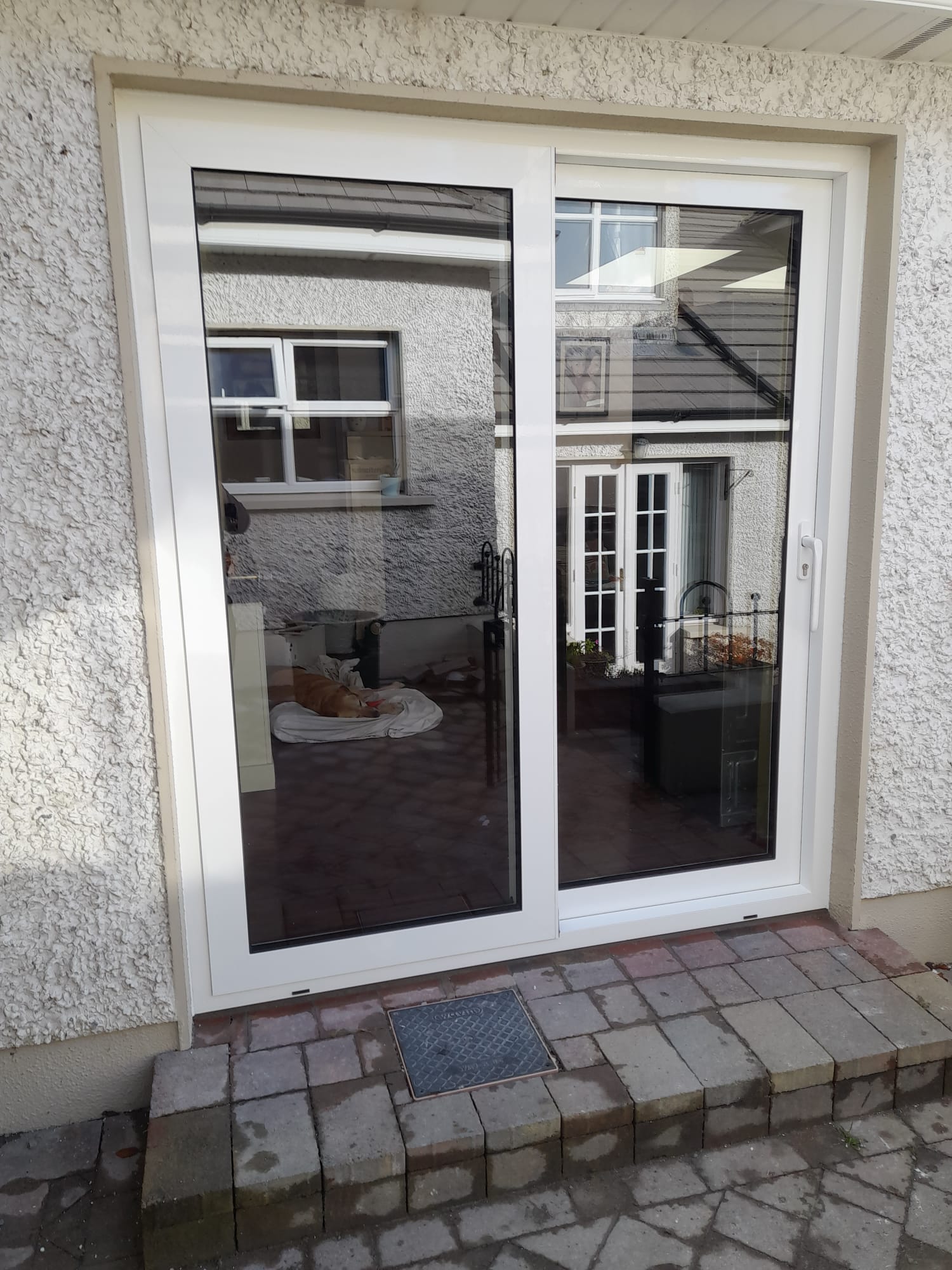

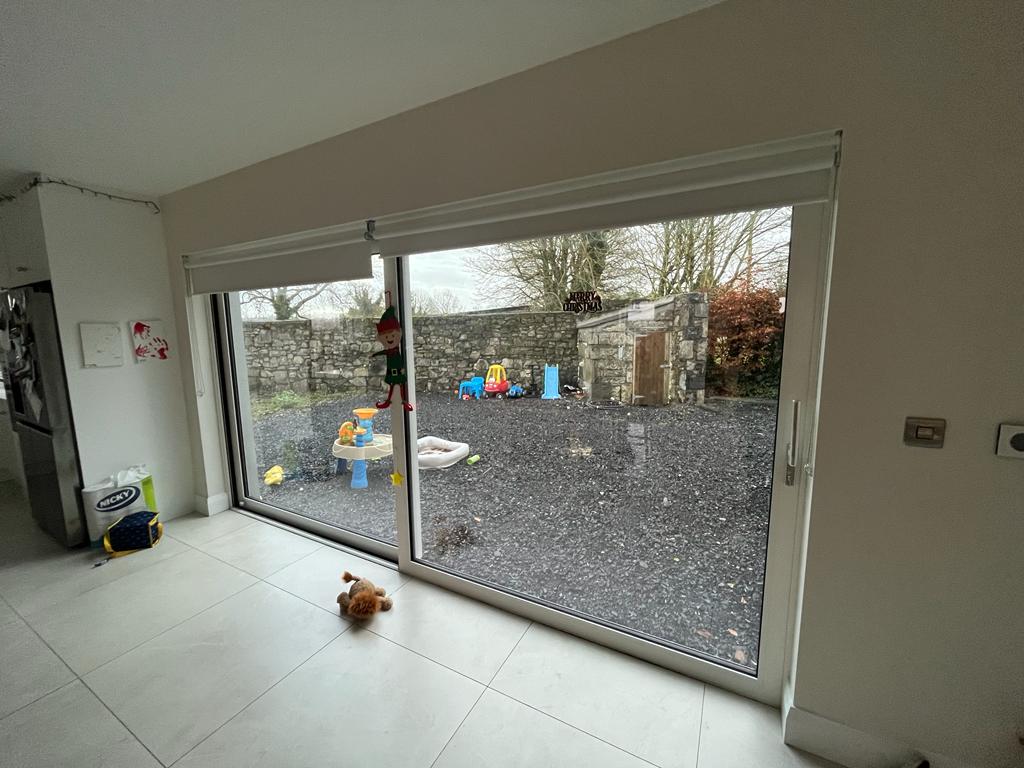

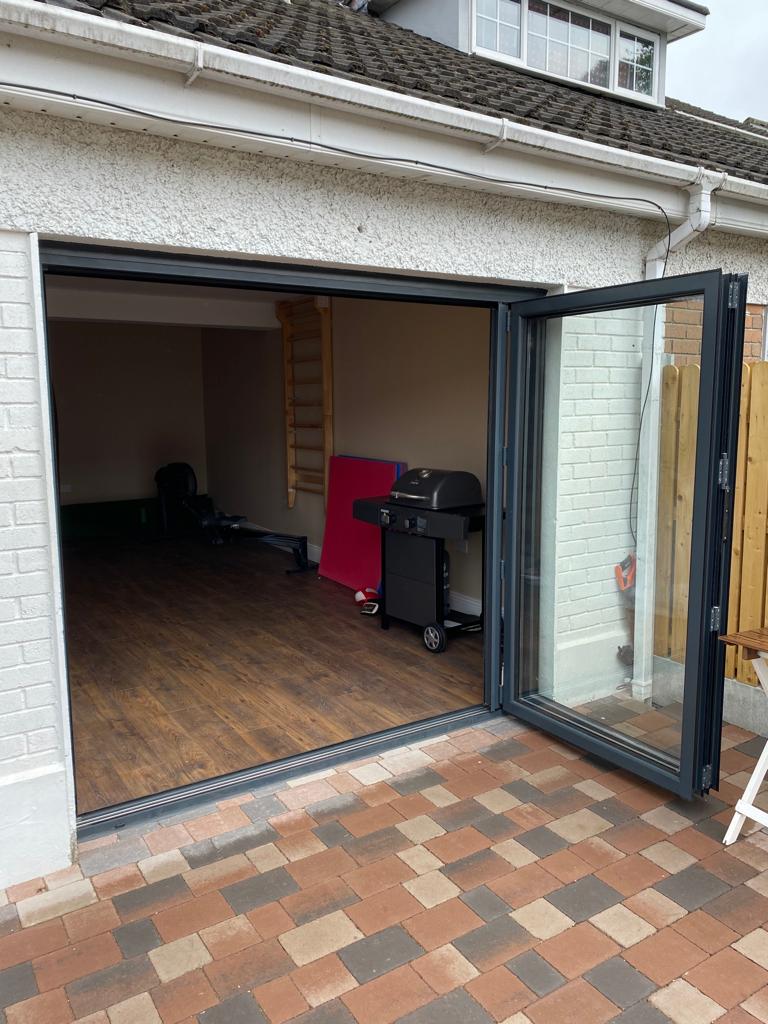

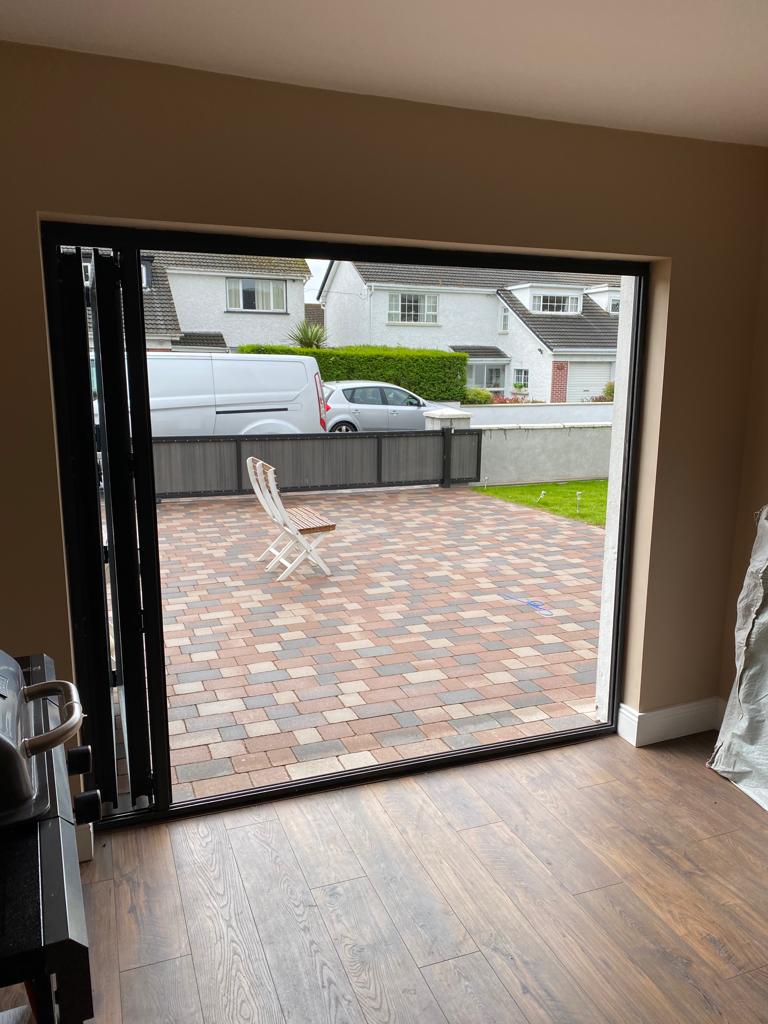

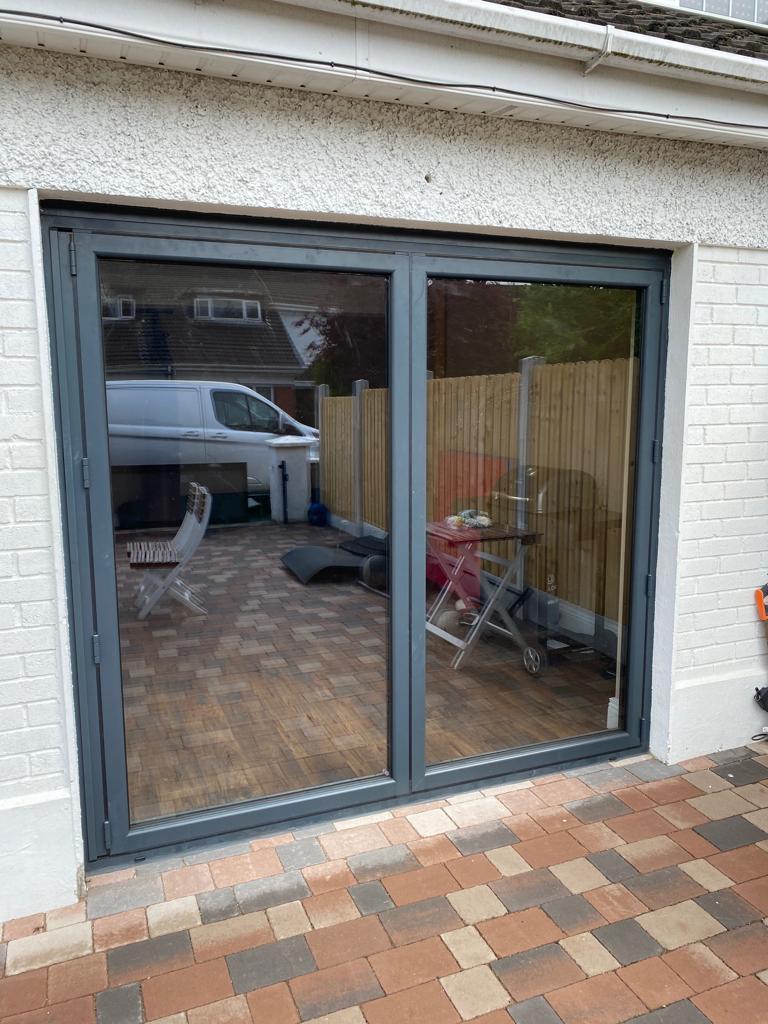

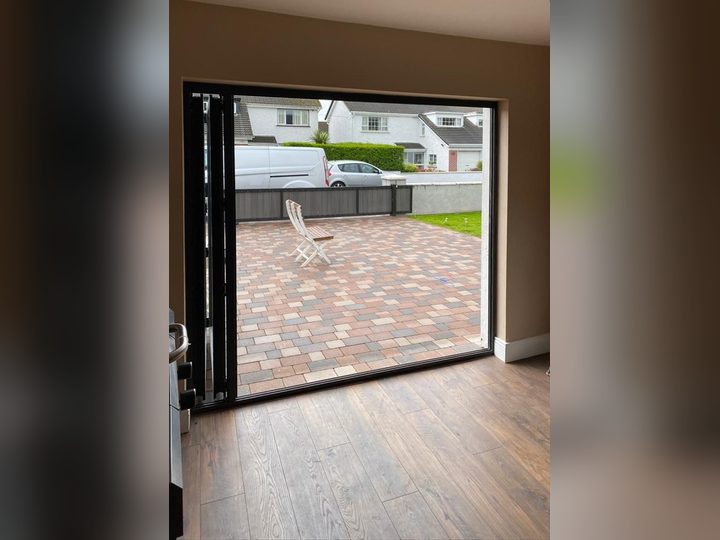

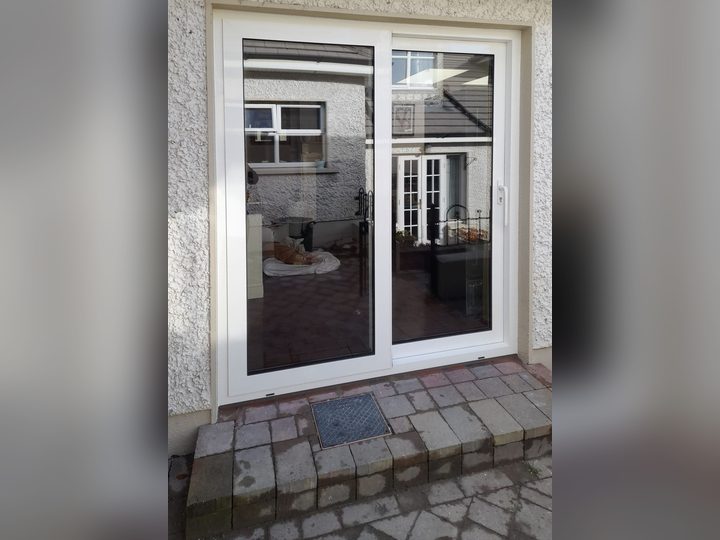

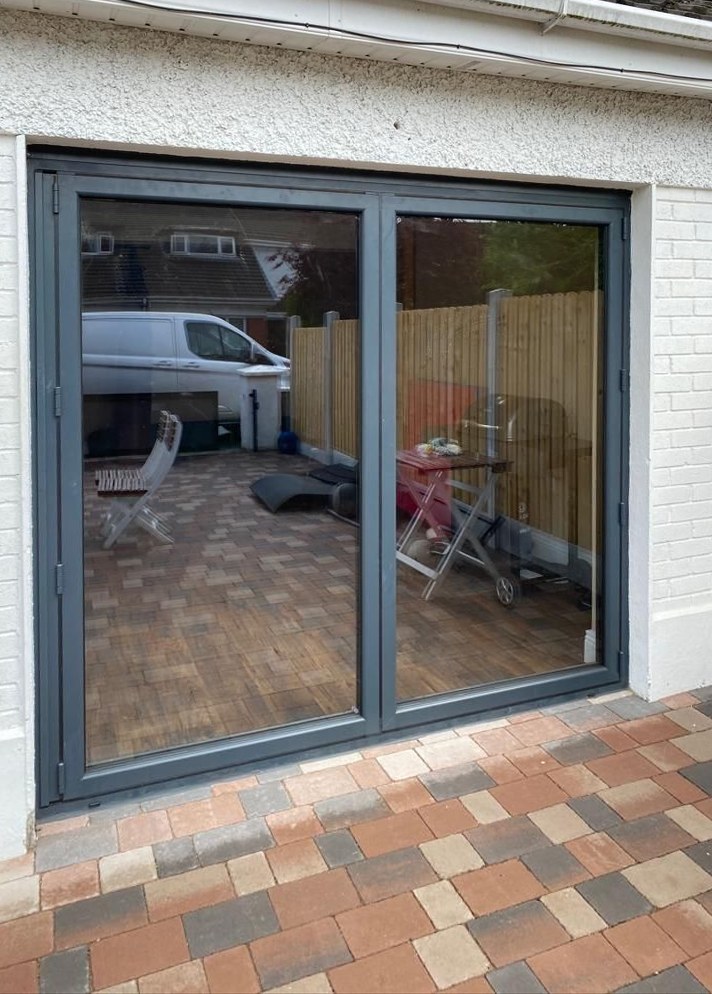

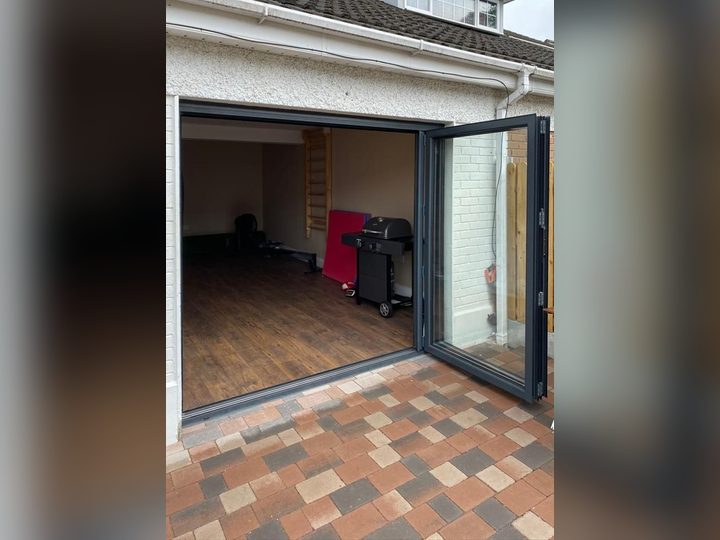

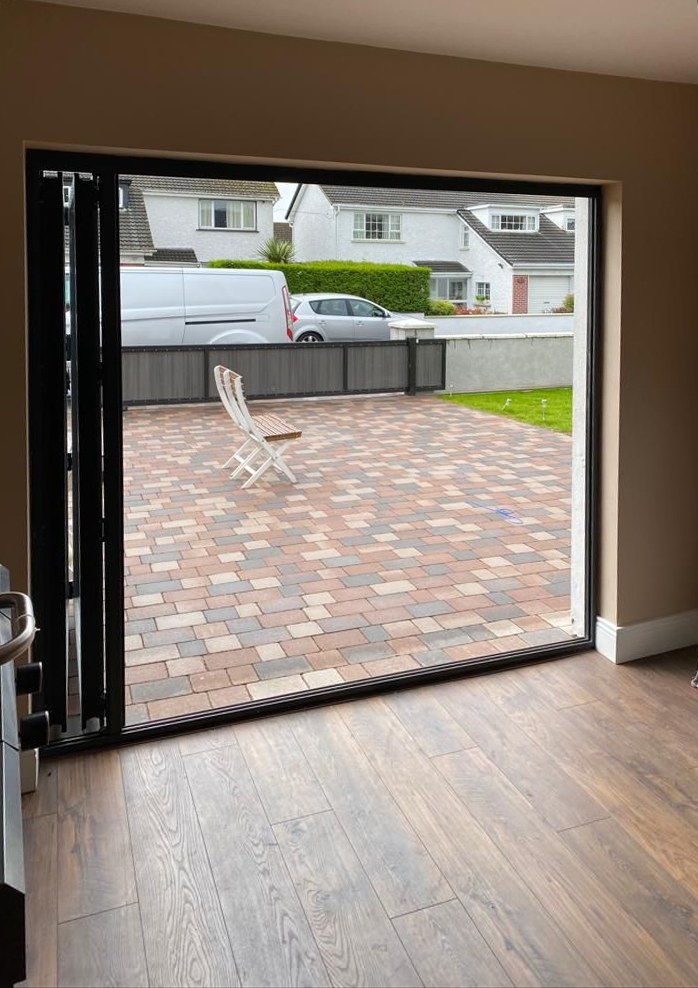

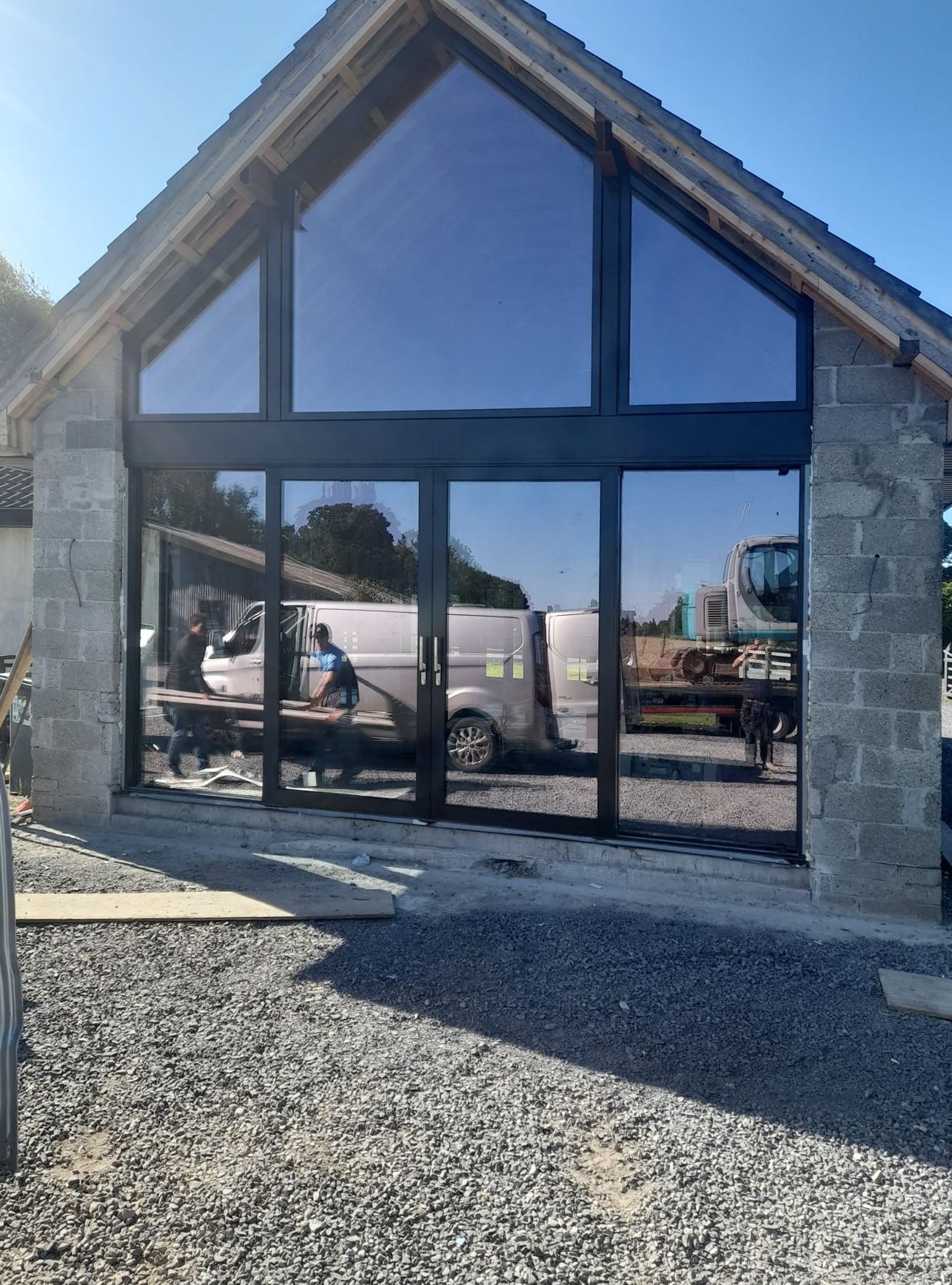

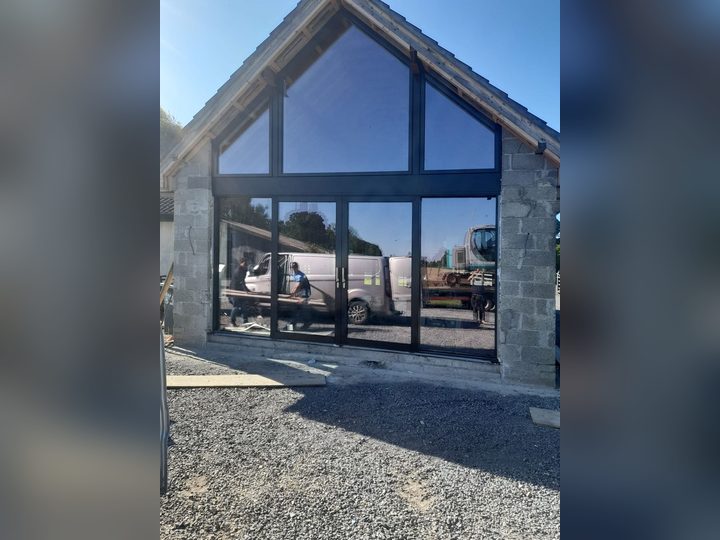

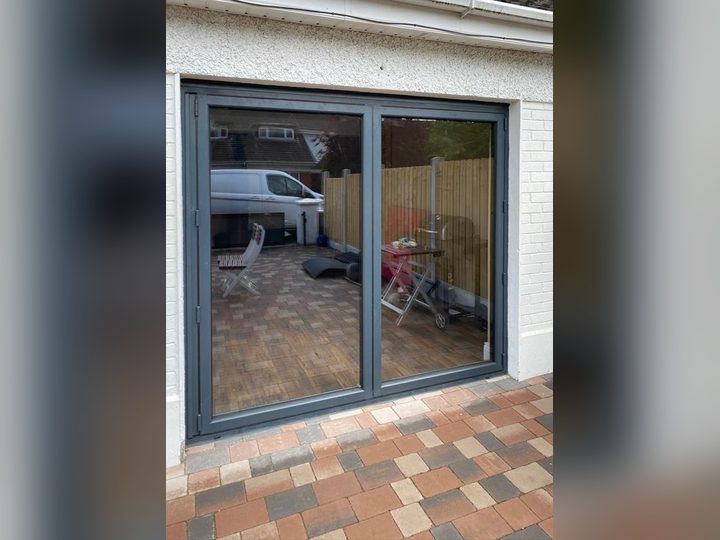

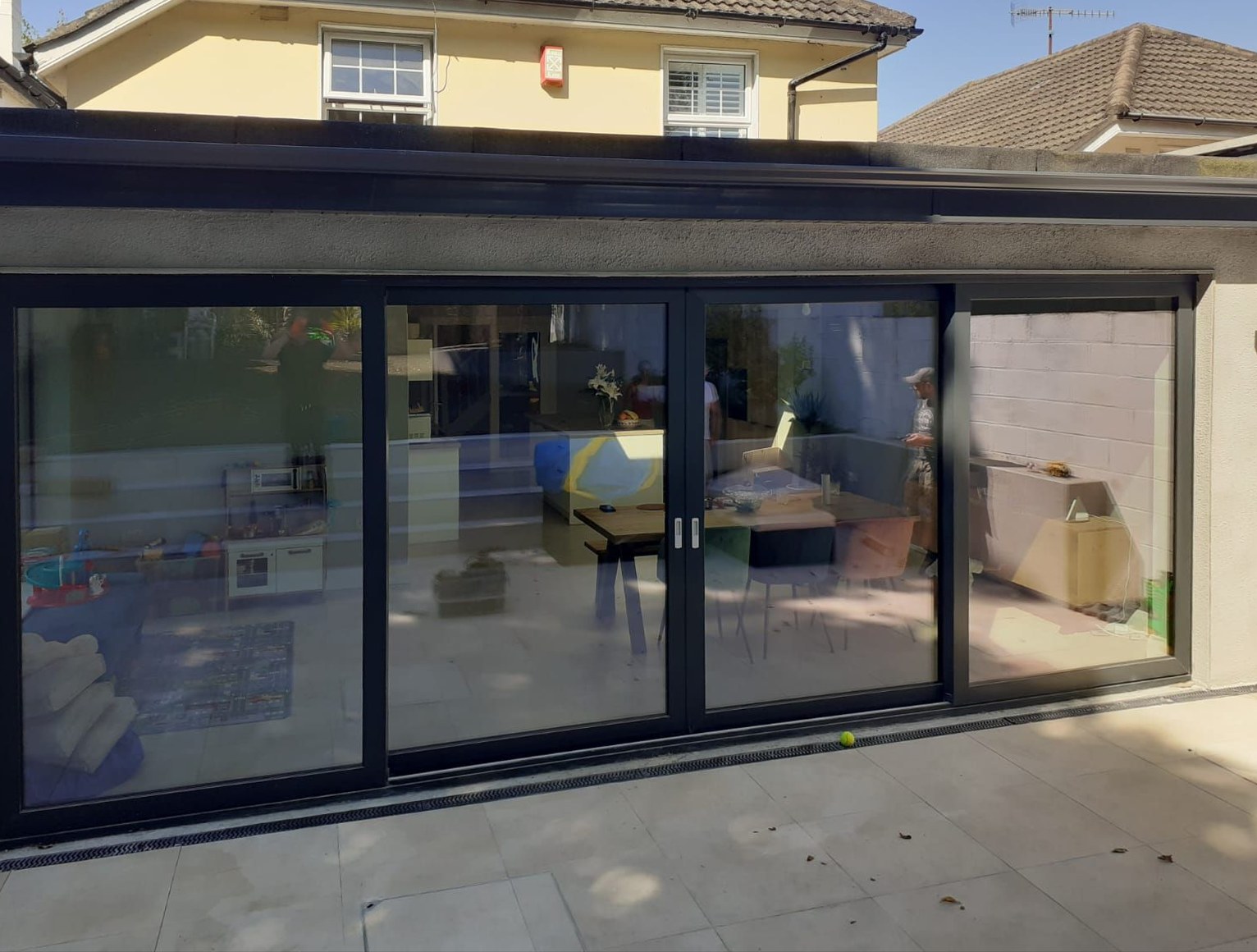

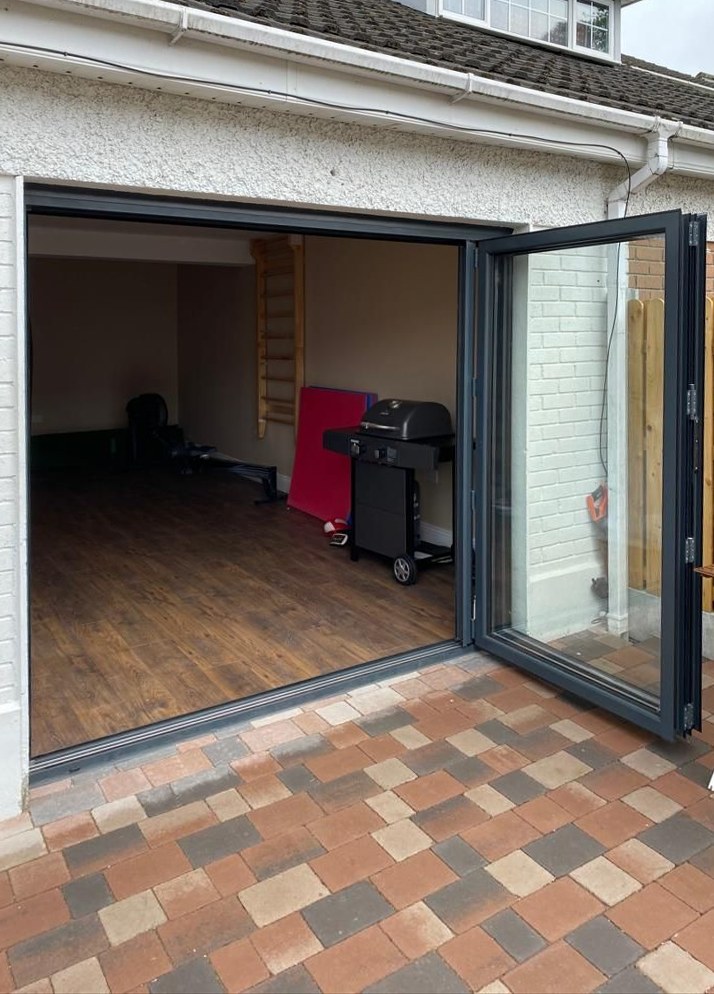

Life & Slide Doors Gallery

Related Services

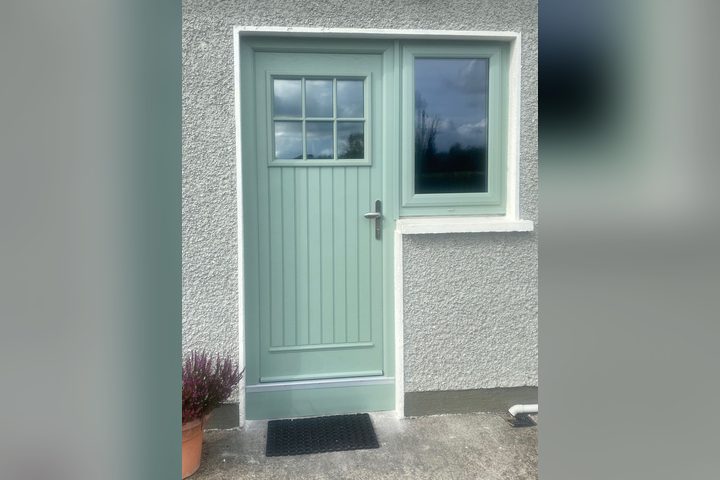

PVC Doors

French Doors offer a stylish substitute for Patio doors, perfectly designed to open up any room, bringing in more light and creating extra space.

Read More »

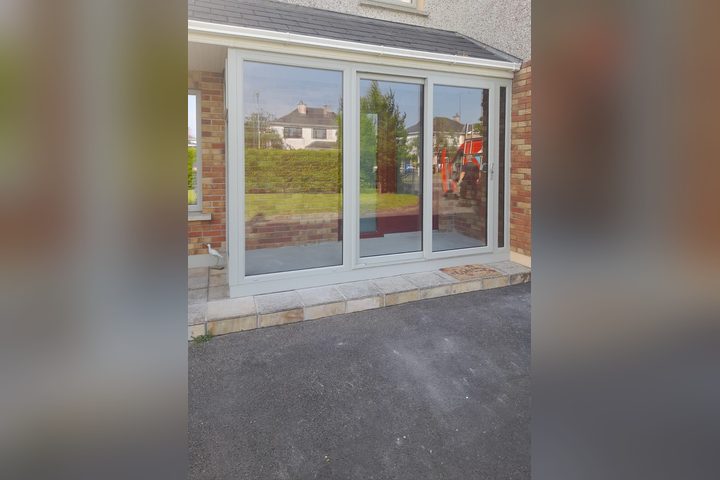

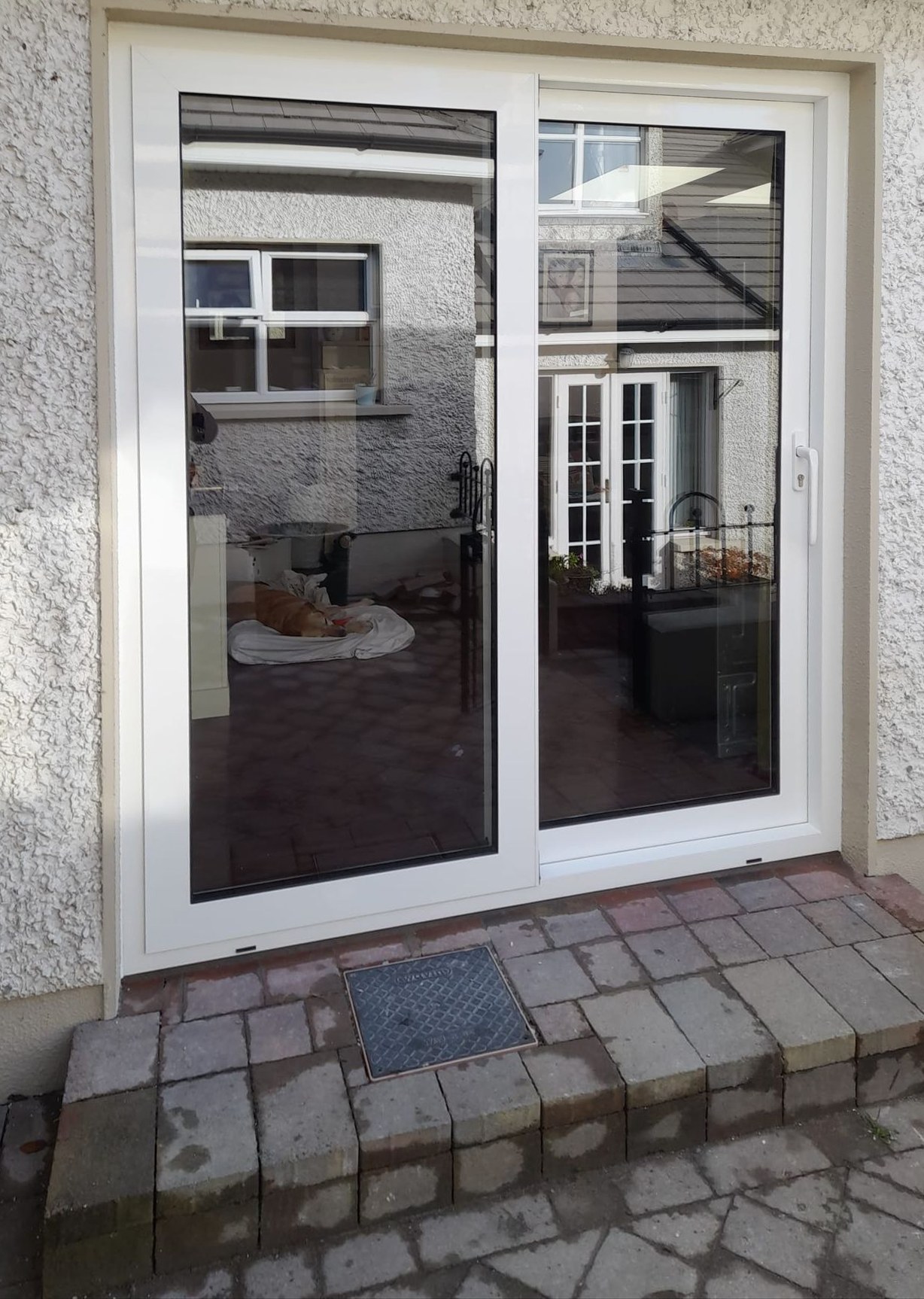

Sliding Doors

Patio doors are a versatile option and ideal for both conservatories and porches. The handle and locking system provides improved aesthetics and security through outward

Read More »

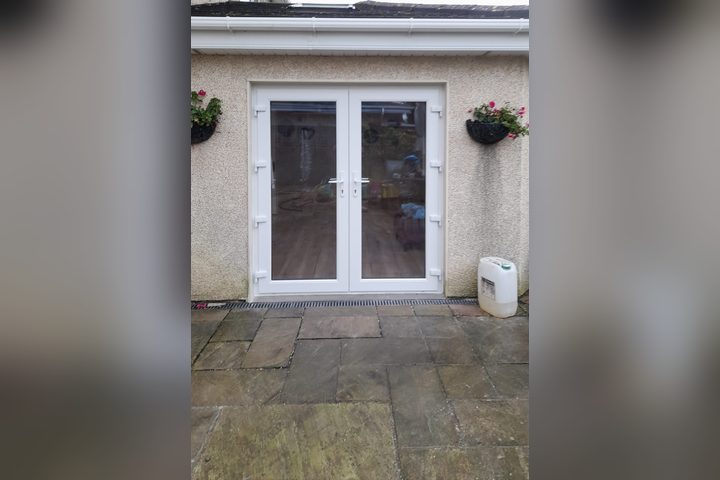

French Doors

French Doors offer a stylish substitute for Patio doors, perfectly designed to open up any room, bringing in more light and creating extra space.

Read More »
Scroll to Top

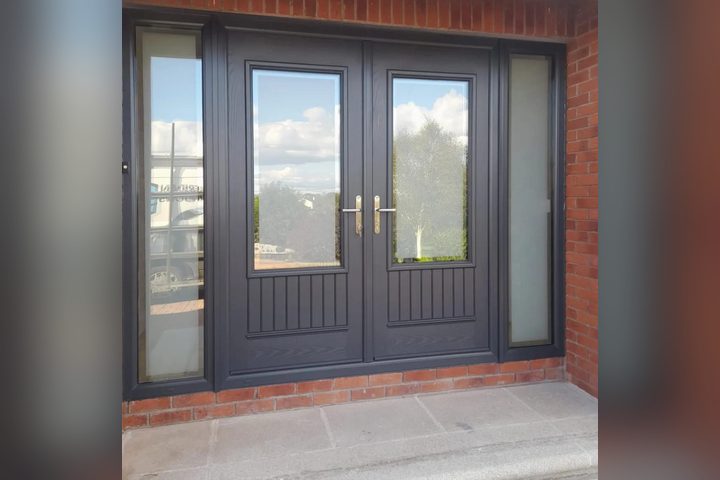

Palladio Door Designer
